52103498 | LAPP
Dummy plug, NPT 1'', 36 mm, IP68/IP69, metal, 52103498
Order No.: 33P7002
EAN: 4044773332902
MPN:
52103498
SKINDICHT HYGIENIC BL-NPT 1''
Series: SKINDICHT HYGIENIC BL-NPT
Unit Price (€ / pc.)
69.2699 € *
Standard delivery time from the manufacturer is: 6 Weeks

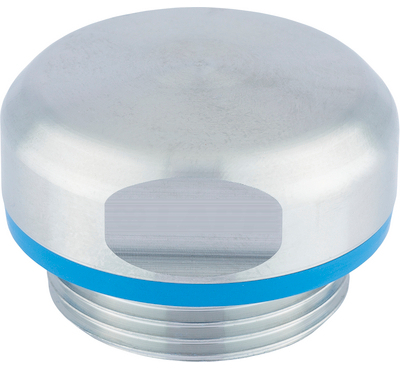

Dummy plug, 52103498, LAPP
The 52103498 is a high quality blind plug with NPT thread that is suitable for hygienic critical areas. The blind plug is used wherever already existing housing holes are not yet required or no longer required. The innovative hygienic design prevents food machines, facilities or components from risk of contamination. The blind plug is suitable for use in applications where mechanical and chemical stability to very aggressive media is required and offers quality and safety in food, pharmaceutical and chemical industry.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | dummy plug | |
| Thread size | NPT 1'' | |
| Length | 23.5 mm | |
| max. operating temperature | 220 °C | |
| Degree of protection (IP) | IP68/IP69 | |
| spanner size | 36 mm | |
| min. operating temperature | -20 °C | |
| Material | stainless steel | |
| Colour | metal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
