52103492 | LAPP
Dummy plug, M20, 24 mm, IP68/IP69, metal, 52103492
Order No.: 33P6998
EAN: 4044773332681
MPN:
52103492
SKINDICHT HYGIENIC BL-M 20X1,5
Series: SKINDICHT HYGIENIC BL-M
Unit Price (€ / pc.)
25.9063 € *
Available: 0 pcs.
Leadtime: On Request **

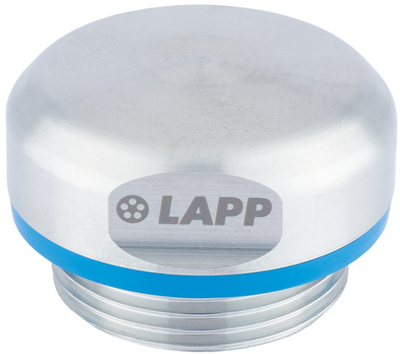

Dummy plug, 52103492, LAPP
The 52103492 is a high quality blind plug that is suitable for hygienic critical areas. The blind plug is used wherever already existing housing holes are not yet required or no longer required. The innovative hygienic design prevents food machines, facilities or components from risk of contamination. The blind plug is suitable for use in applications where mechanical and chemical stability to very aggressive media is required and offers quality and safety in food, pharmaceutical and chemical industry.
Technical specifications
Colour | metal | |
Degree of protection (IP) | IP68/IP69 | |
Length | 19.9 mm | |
Product type | dummy plug | |
min. operating temperature | -20 °C | |
Material | stainless steel | |
spanner size | 24 mm | |
max. operating temperature | 220 °C | |
Thread size | M20 |
Download
Logistics
Country of origin | DE |
Customs tariff number | 73269098 |
Compliance
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
