52103490 | LAPP
Dummy plug, M12, 16 mm, IP68/IP69, metal, 52103490
Order No.: 33P6996
EAN: 4044773332902
MPN:
52103490
SKINDICHT HYGIENIC BL-M 12X1,5
Series: SKINDICHT HYGIENIC BL-M
Unit Price (€ / pc.)
20.8488 € *
Standard delivery time from the manufacturer is: On Request

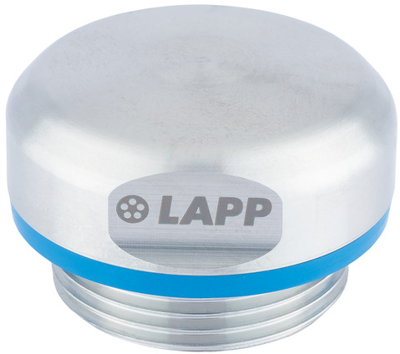

Dummy plug, 52103490, LAPP
The 52103490 is a high quality blind plug that is suitable for hygienic critical areas. The blind plug is used wherever already existing housing holes are not yet required or no longer required. The innovative hygienic design prevents food machines, facilities or components from risk of contamination. The blind plug is suitable for use in applications where mechanical and chemical stability to very aggressive media is required and offers quality and safety in food, pharmaceutical and chemical industry.
Technical specifications
| Colour | metal | |
| Degree of protection (IP) | IP68/IP69 | |
| Length | 16.9 mm | |
| Product type | dummy plug | |
| min. operating temperature | -20 °C | |
| Material | stainless steel | |
| spanner size | 16 mm | |
| max. operating temperature | 220 °C | |
| Thread size | M12 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
