52101979 | LAPP

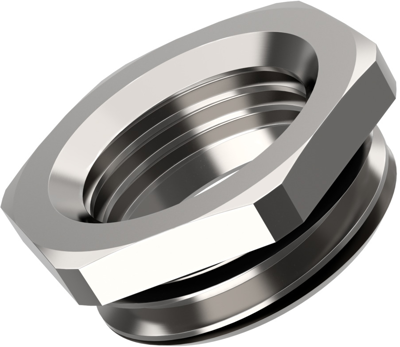

Adapter/reduction, M75 to M63, 80 mm, IP68, metal, 52101979
Order No.: 33P6807
EAN: 4044773644395
MPN:
52101979
SKINDICHT MR-M 6kt. 75X1,5/63X1,5+O-RING
Series: SKINDICHT MR-M hex.
Unit Price (€ / pc.)
81.0509 € *
Standard delivery time from the manufacturer is: 6 Weeks
Reduction, 52101979, LAPP
The 52101979 reducer hexagonal, enables the use of cable gland with smaller connection threads than the existing threaded holes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Product type | adapter/reduction | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| Length | 17 mm | |
| Thread size | M75 to M63 | |
| min. operating temperature | -30 °C | |
| Colour | metal | |
| spanner size | 80 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
