52101974 | LAPP
Adapter/reduction, M40 to M25, 43 mm, IP68, metal, 52101974
Order No.: 33P6803
EAN: 4044773471885
MPN:
52101974
SKINDICHT MR-M 6kt. 40X1,5/25X1,5+O-RING
Series: SKINDICHT MR-M hex.
Unit Price (€ / pc.)
11.4954 € *
Standard delivery time from the manufacturer is: 6 Weeks

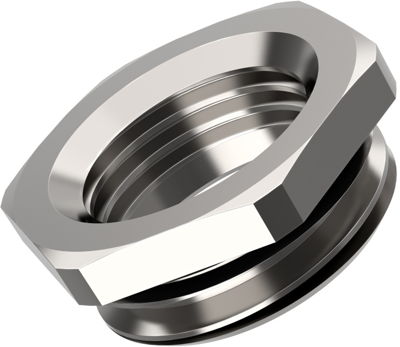

Reduction, 52101974, LAPP
The 52101974 reducer hexagonal, enables the use of cable gland with smaller connection threads than the existing threaded holes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 43 mm | |
| max. operating temperature | 100 °C | |
| Thread size | M40 to M25 | |
| Length | 12.5 mm | |
| Colour | metal | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| min. operating temperature | -30 °C | |
| Product type | adapter/reduction |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
