52101965LF | LAPP
Adapter/reduction, M16 to M12, 18 mm, IP68, metal, 52101965LF
Order No.: 33P6792
EAN: 4064727489810
MPN:
52101965LF
SKINDICHT MR-M 6kt. 16x1,5/12x1,5+O-RING
Series: SKINDICHT MR-M hex.
Unit Price (€ / pc.)
4.2126 € *
Standard delivery time from the manufacturer is: 6 Weeks

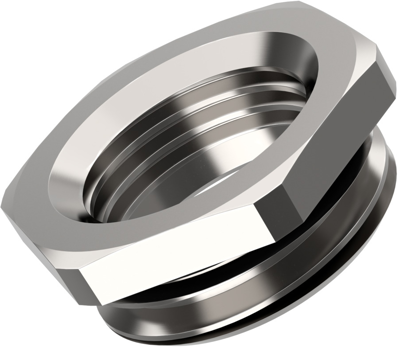

Reduction, 52101965LF, LAPP
The 52101965LF reducer hexagonal, enables the use of cable gland with smaller connection threads than the existing threaded holes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 18 mm | |
| max. operating temperature | 100 °C | |
| Thread size | M16 to M12 | |
| Length | 8.5 mm | |
| Colour | metal | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| min. operating temperature | -30 °C | |
| Product type | adapter/reduction |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
