52025150 | LAPP
Adapter/reduction, PG36 to PG21, 53 mm, light gray, 52025150
Unit Price (€ / pc.)
6.3308 € *
Standard delivery time from the manufacturer is: 6 Weeks
Reduction, 52025150, LAPP

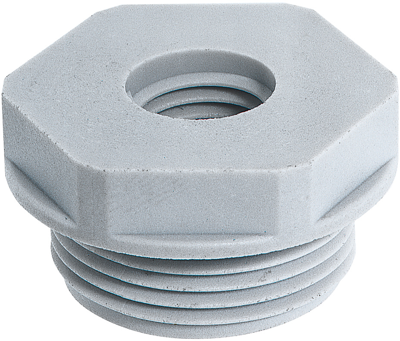

The 52025150 is a reduction with PG-threads, outer hexagon and flat design.
Features
- Enables the use of cable glands with smaller connection threads than the existing threaded holes
- Glass fibre-reinforced for maximum mechanical stability
Applications
- Machines
- Devices
- Housings
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Product type | adapter/reduction | |
| max. operating temperature | 100 °C | |
| Length | 21 mm | |
| Thread size | PG36 to PG21 | |
| min. operating temperature | -40 °C | |
| Colour | light gray | |
| spanner size | 53 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
