52025110 | LAPP

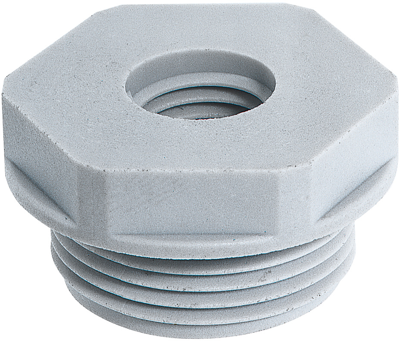

Adapter/reduction, PG16 to PG9, 27 mm, light gray, 52025110
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 6 Weeks
Reduction, 52025110, LAPP
The 52025110 is a reduction with PG-threads, outer hexagon and flat design.
Features
- Enables the use of cable glands with smaller connection threads than the existing threaded holes
- Glass fibre-reinforced for maximum mechanical stability
Applications
- Machines
- Devices
- Housings
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| Length | 17 mm | |
| Product type | adapter/reduction | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| spanner size | 27 mm | |
| max. operating temperature | 100 °C | |
| Thread size | PG16 to PG9 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
