52024966 | LAPP
Cable gland, PG21 to PG21, 30/30 mm, Clamping range 15.8 to 17.8 mm, IP68, metal, 52024966
Order No.: 33P7033
EAN: 4044773332698
MPN:
52024966
SKINDICHT SHV-FKM PG 21/21/18
Series: SKINDICHT SHV FKM
Unit Price (€ / pc.)
19.7778 € *
Standard delivery time from the manufacturer is: 6 Weeks

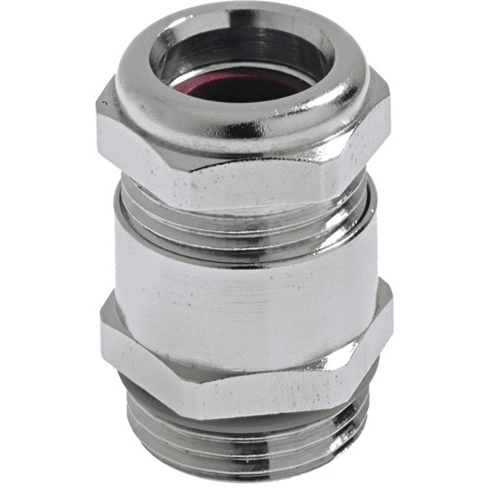

Cable gland, 52024966, LAPP
The 52024966 cable gland is a water-proof cable gland. The special conical sealing element of VITON extends through the entire gland and thus guarantees excellent resistance to pressure and strain relief. The VITON sealing cone is of outstanding resistance to oils and biological oils, solvents and chemicals at high temperatures.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG21 to PG21 | |
| min. clamping range | 15.8 mm | |
| max. clamping range | 17.8 mm | |
| spanner size | 30/30 mm | |
| Length | 38 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | metal | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
