52023719 | LAPP

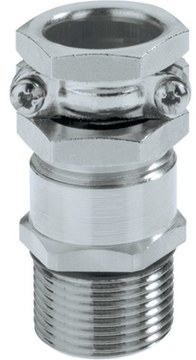

Cable gland, PG13.5, 22/22 mm, Clamping range 12.5 to 14 mm, IP65, 52023719
Unit Price (€ / pc.)
13.5422 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.54 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5422 €
10 pcs.
12.2689 €
25 pcs.
11.6263 €
50 pcs.
10.9837 €
100 pcs.
10.3173 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 22/22 mm | |
| max. operating temperature | 80 °C | |
| max. clamping range | 14 mm | |
| Thread size | PG13.5 | |
| Length | 48.5 mm | |
| Degree of protection (IP) | IP65 | |
| Material | brass, nickel-plated | |
| min. clamping range | 12.5 mm | |
| min. operating temperature | -20 °C | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
