52015700 | LAPP

Cable gland, PG7, 14 mm, Clamping range 2 to 6.5 mm, IP68, 52015700

Order No.: 32P2826
EAN: 4044773420593
MPN:
52015700
SKINTOP MS PG 7
Series: SKINTOP MS

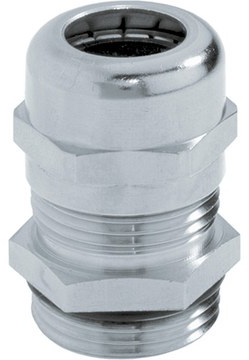

52015700 LAPP Cable Glands Image 1
52015700 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Available: 150 pcs.
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.7128 €
100 pcs.
3.2725 €
250 pcs.
3.1297 €
1000 pcs.
2.9274 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable gland, 52015700, LAPP

Cable gland with maximum reliability, in areas where mechanical and chemical stability are critical.

Features

  • Good chemical resistance
  • Corrosion-resistant
  • Optimum strain relief
  • Temperature-resistant
Technical specifications
Filter Property Value
spanner size 14 mm
Degree of protection (IP) IP68
min. operating temperature -25 °C
max. operating temperature 100 °C
Material brass, nickel-plated
max. clamping range 6.5 mm
min. clamping range 2 mm
Length 25 mm
Thread size PG7
Product type cable gland
Logistics
Property Value
Customs tariff number 74198090
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
