52010600 | LAPP
Cable gland, PG21, 30 mm, Clamping range 14 to 15.8 mm, IP65/IP68, metal, 52010600
Order No.: 33P6831
EAN: 4044773423594
MPN:
52010600
SKINDICHT SHVE PG 21/16/16/12
Series: SKINDICHT SHVE
Unit Price (€ / pc.)
17.0646 € *
Standard delivery time from the manufacturer is: 6 Weeks

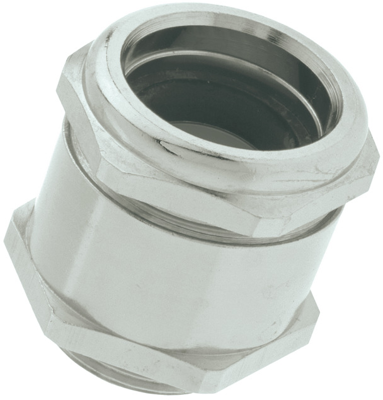

Cable gland, 52010600, LAPP
The 52010600 cable gland with low-resistance 360° screen contact and high degree of protection, as earthing gland.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| spanner size | 30 mm | |
| Length | 33.5 mm | |
| min. operating temperature | -20 °C | |
| Colour | metal | |
| Material | brass, nickel-plated | |
| Thread size | PG21 | |
| min. clamping range | 14 mm | |
| max. clamping range | 15.8 mm | |
| Degree of protection (IP) | IP65/IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
