52001887 | LAPP
Cable gland, M8, 11/11 mm, Clamping range 2 to 3 mm, IP66/IP68, metal, 52001887
Unit Price (€ / pc.)
4.9028 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9028 €
10 pcs.
4.3197 €
50 pcs.
3.7961 €
100 pcs.
3.6414 €
500 pcs.
3.4153 €
*incl. VAT plus shipping costs
Subject to prior sale

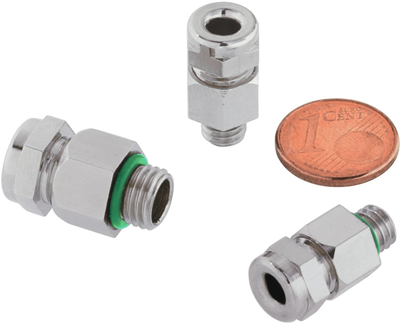

Cable gland, 52001887, LAPP
Cable gland for the smallest conductor sizes and high packing density, gentle cable clamping and high degree of protection.
Features
- Suitable for high temperature and aggressive media surroundings
- For high temperature ranges up to max. +200°C
- Good chemical resistance
- Heat-resistant
- Acid-resistant
- Space requirement
Applications
- For use wherever there is limited assembly space
- Sensors
- Measurement and control technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -20 °C | |
| max. operating temperature | 200 °C | |
| Length | 20.5 mm | |
| max. clamping range | 3 mm | |
| Product type | cable gland | |
| Degree of protection (IP) | IP66/IP68 | |
| Colour | metal | |
| min. clamping range | 2 mm | |
| Thread size | M8 | |
| spanner size | 11/11 mm | |
| Material | brass, nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
