52001879 | LAPP

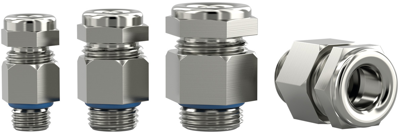

Cable gland, M10, 14/14 mm, Clamping range 5.5 to 7 mm, IP66/IP68, metal, 52001879
Order No.: 12H6508
EAN: 4056157130011
MPN:
52001879
SKINDICHT MINI M10X1 COLD
Series: SKINDICHT MINI
Unit Price (€ / pc.)
15.5414 € *
Available: 22 pcs.
Total Price:
15.54 € *
Price list
Quantity
Price per unit*
1 pcs.
15.5414 €
10 pcs.
13.6850 €
50 pcs.
12.7449 €
100 pcs.
12.1856 €
500 pcs.
11.5787 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 52001879, LAPP
Cable gland for the smallest conductor sizes and high packing density, gentle cable clamping and high degree of protection.
Features
- Suitable for high temperature and aggressive media surroundings
- For low temperature ranges up to -60°C
- Cold-resistant
- Temperature-resistant
- Space requirement
Applications
- For use wherever there is limited assembly space
- Sensors
- Measurement and control technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 7 mm | |
| min. clamping range | 5.5 mm | |
| Colour | metal | |
| spanner size | 14/14 mm | |
| Degree of protection (IP) | IP66/IP68 | |
| Thread size | M10 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -60 °C | |
| Product type | cable gland | |
| Length | 22.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
