52001877 | LAPP

Cable gland, M6, 9/9 mm, Clamping range 2 to 3 mm, IP66/IP68, metal, 52001877

Order No.: 12H6506
EAN: 4056157129992
MPN:
52001877
SKINDICHT MINI M6X1 COLD
Series: SKINDICHT MINI
52001877 LAPP Cable Glands

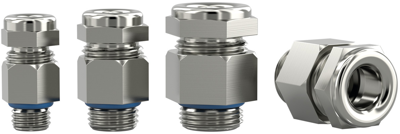

Image may differ
Unit Price (€ / pc.)
8.6037 € *
Available: 48 pcs.
Total Price:
8.60 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6037 €
10 pcs.
7.5803 €
50 pcs.
7.0686 €
100 pcs.
6.7354 €
500 pcs.
6.4022 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable gland, 52001877, LAPP

Cable gland for the smallest conductor sizes and high packing density, gentle cable clamping and high degree of protection.

Features

  • Suitable for high temperature and aggressive media surroundings
  • For low temperature ranges up to -60°C
  • Cold-resistant
  • Temperature-resistant
  • Space requirement

Applications

  • For use wherever there is limited assembly space
  • Sensors
  • Measurement and control technology
Technical specifications
Colour metal
Degree of protection (IP) IP66/IP68
max. clamping range 3 mm
Length 19.7 mm
Product type cable gland
min. operating temperature -60 °C
Material brass, nickel-plated
spanner size 9/9 mm
max. operating temperature 100 °C
min. clamping range 2 mm
Thread size M6
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
