52001860 | LAPP
Cable gland, M6, 9 mm, Clamping range 2 to 3 mm, IP68, silver gray, 52001860
Unit Price (€ / pc.)
4.7719 € *
Available: 89 pcs.
Total Price:
4.77 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7719 €
10 pcs.
4.3197 €
50 pcs.
4.0222 €
100 pcs.
3.7366 €
500 pcs.
3.4391 €
*incl. VAT plus shipping costs
Subject to prior sale

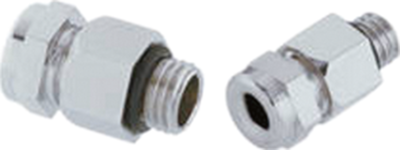

Miniature cable gland series SKINDICHT MINI, type Lapp Kabel 52001860
Made of nickel-plated brass. With CR/NBR seal insert. Degree of protection IP 68. All-round and even cable adaptation with optimal protection of the cable sheath.

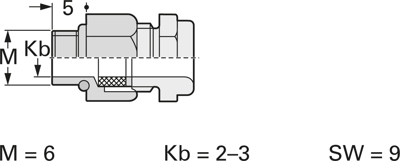

Thread: M 6 x 1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 9 mm | |
| Length | 19.7 mm | |
| min. operating temperature | -20 °C | |
| Colour | silver gray | |
| Material | brass, nickel-plated | |
| Thread size | M6 | |
| min. clamping range | 2 mm | |
| max. clamping range | 3 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
