52001090 | LAPP

Cable gland, with bend protection, PG21, 30/30 mm, Clamping range 15 to 17 mm, IP65, silver gray, 52001090

Order No.: 12H2854
EAN: 4044773414608
MPN:
52001090
SKINDICHT SR PG 21/17
Series: SKINDICHT SR

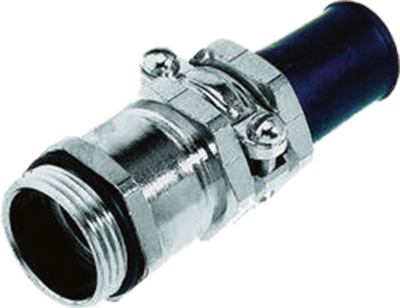

52001090 LAPP Cable Glands Image 1
52001090 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
20.7298 € *
Available: 24 pcs.
Total Price:
20.73 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7298 €
10 pcs.
19.5755 €
25 pcs.
18.4331 €
50 pcs.
17.2788 €
100 pcs.
16.1245 €
*incl. VAT plus shipping costs
Subject to prior sale

Screwed cable glands series SKINDICHT SR, type Lapp Kabel 5200.

With strain relief and anti-kink guard for round cables, metal version for demanding applications, corrosion resistant and salt water-proof; Degree of protection: IP 65. Metal parts: nickel-plated brass. Anti-kink guard: CR, flame retardant. O-ring seal: NBR. Operating temperatures: –20 to +80 °C.

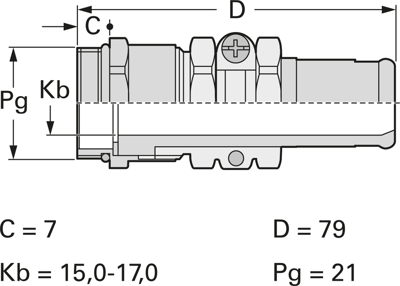

Technical attributes (type, Pg size, cable clamping range, dimensions (C/D)): 52001090, Pg 21, 15 to 17 mm, C 7.0/D 79 mm

Technical specifications
Filter Property Value
spanner size 30/30 mm
min. clamping range 15 mm
Product type cable gland
max. operating temperature 80 °C
Material brass, nickel-plated
max. clamping range 17 mm
Length 79 mm
min. operating temperature -20 °C
Degree of protection (IP) IP65
Thread size PG21
Colour silver gray
Version with bend protection
Logistics
Property Value
Customs tariff number 74198090
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
