52001070 | LAPP

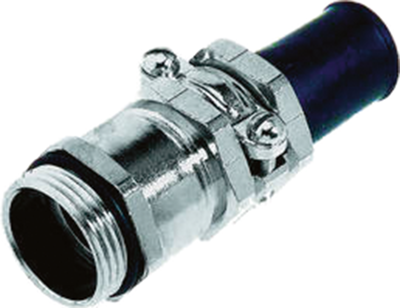

Cable gland, with bend protection, PG16, 24/24 mm, Clamping range 13 to 15 mm, IP65, silver gray, 52001070
Unit Price (€ / pc.)
14.9821 € *
Available: 1 pcs.
Total Price:
14.98 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9821 €
10 pcs.
14.1372 €
25 pcs.
13.3042 €
50 pcs.
12.4712 €
100 pcs.
11.6501 €
*incl. VAT plus shipping costs
Subject to prior sale
Screwed cable glands series SKINDICHT SR, type Lapp Kabel 5200.
With strain relief and anti-kink guard for round cables, metal version for demanding applications, corrosion resistant and salt water-proof; Degree of protection: IP 65. Metal parts: nickel-plated brass. Anti-kink guard: CR, flame retardant. O-ring seal: NBR. Operating temperatures: –20 to +80 °C.

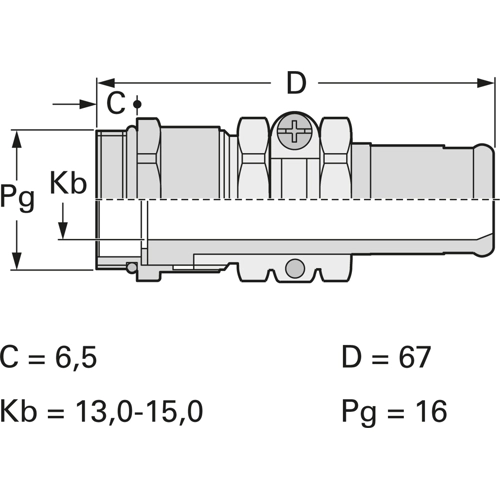

Technical attributes (type, Pg size, cable clamping range, dimensions (C/D)): 52001070, Pg 16, 13 to 15 mm, C 6.5/D 67 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 15 mm | |
| min. clamping range | 13 mm | |
| Colour | silver gray | |
| spanner size | 24/24 mm | |
| Degree of protection (IP) | IP65 | |
| Thread size | PG16 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C | |
| Version | with bend protection | |
| Product type | cable gland | |
| Length | 67 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
