Cable gland, with bend protection, PG13.5, 22/22 mm, Clamping range 11 to 13 mm, IP65, silver gray, 52001050

Order No.: 12H2850
EAN: 4044773414943
MPN:
52001050
SKINDICHT SR PG 13/13
Series: SKINDICHT SR
52001050 LAPP Cable Glands Image 1
52001050 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
13.1019 € *
Available: 36 pcs.
Total Price:
13.10 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1019 €
10 pcs.
12.3760 €
25 pcs.
11.6382 €
50 pcs.
10.9123 €
100 pcs.
10.1983 €
*incl. VAT plus shipping costs
Subject to prior sale

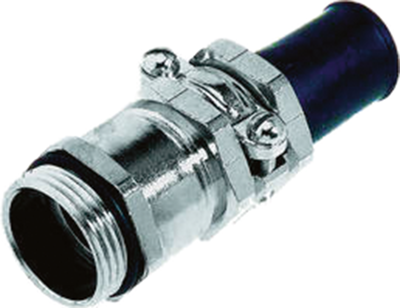

Screwed cable glands series SKINDICHT SR, type Lapp Kabel 5200.

With strain relief and anti-kink guard for round cables, metal version for demanding applications, corrosion resistant and salt water-proof; Degree of protection: IP 65. Metal parts: nickel-plated brass. Anti-kink guard: CR, flame retardant. O-ring seal: NBR. Operating temperatures: –20 to +80 °C.

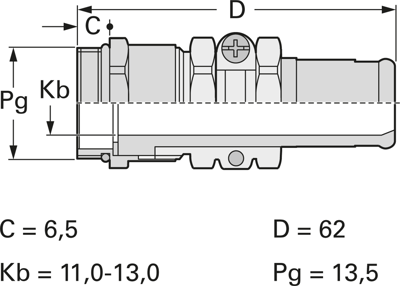

Technical attributes (type, Pg size, cable clamping range, dimensions (C/D)): 52001050, Pg 13.5, 11 to 13 mm, C 6.5/D 62 mm

Technical specifications
Filter Property Value
Colour silver gray
Thread size PG13.5
max. clamping range 13 mm
Degree of protection (IP) IP65
Length 62 mm
max. operating temperature 80 °C
min. operating temperature -20 °C
spanner size 22/22 mm
Material brass, nickel-plated
Version with bend protection
Product type cable gland
min. clamping range 11 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 74198090
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
