52001030 | LAPP

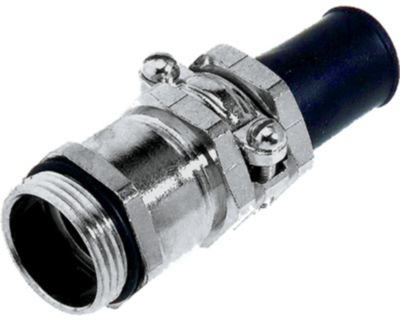

Cable gland, with bend protection, PG13.5, 22/22 mm, Clamping range 7.5 to 9 mm, IP65, silver gray, 52001030
Unit Price (€ / pc.)
13.1019 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.10 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1019 €
10 pcs.
12.3760 €
25 pcs.
11.6382 €
50 pcs.
10.9123 €
100 pcs.
10.1983 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 52001080, LAPP
SKINDICHT® SR, robust PG brass cable gland with bending & anti-kink protection, high degree of protection,for cables with large outer diameters
BENEFITS
- Reliable bending and anti-kink protection
- High strain relief
- For cables with large outer diameters
- High degree of protection
TECHNICAL DATA
- Protection rating: IP67
- Temperature range: -20 °C to 80 °C
- Material: Brass, nickel-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| Thread size | PG13.5 | |
| max. clamping range | 9 mm | |
| Degree of protection (IP) | IP65 | |
| Length | 62 mm | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C | |
| spanner size | 22/22 mm | |
| Material | brass, nickel-plated | |
| Version | with bend protection | |
| Product type | cable gland | |
| min. clamping range | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
