52001020 | LAPP
Cable gland, with bend protection, PG11, 20/20 mm, Clamping range 7.5 to 9 mm, IP65, silver gray, 52001020
Unit Price (€ / pc.)
9.7699 € *
Available: 24 pcs.
Total Price:
9.77 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7699 €
10 pcs.
9.2344 €
25 pcs.
8.6870 €
50 pcs.
8.1396 €
100 pcs.
7.6041 €
*incl. VAT plus shipping costs
Subject to prior sale

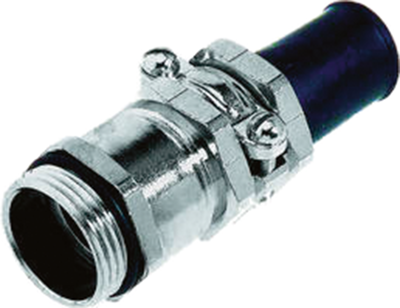

Screwed cable glands series SKINDICHT SR, type Lapp Kabel 5200.
With strain relief and anti-kink guard for round cables, metal version for demanding applications, corrosion resistant and salt water-proof; Degree of protection: IP 65. Metal parts: nickel-plated brass. Anti-kink guard: CR, flame retardant. O-ring seal: NBR. Operating temperatures: –20 to +80 °C.

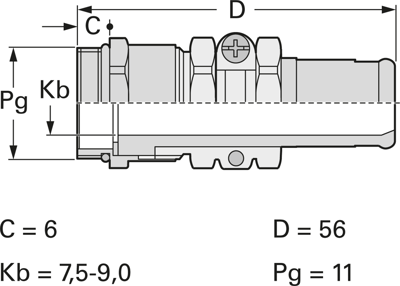

Technical attributes (type, Pg size, cable clamping range, dimensions (C/D)): 52001020, Pg 11, 7.5 to 9.0 mm, C 6.0/D 56 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 9 mm | |
| min. clamping range | 7.5 mm | |
| Colour | silver gray | |
| spanner size | 20/20 mm | |
| Degree of protection (IP) | IP65 | |
| Thread size | PG11 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C | |
| Version | with bend protection | |
| Product type | cable gland | |
| Length | 56 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
