51730040 | LAPP
Adapter/reduction, PG21 to PG13.5, 33 mm, light gray, 51730040
Unit Price (€ / pc.)
1.5232 € *
Standard delivery time from the manufacturer is: 6 Weeks

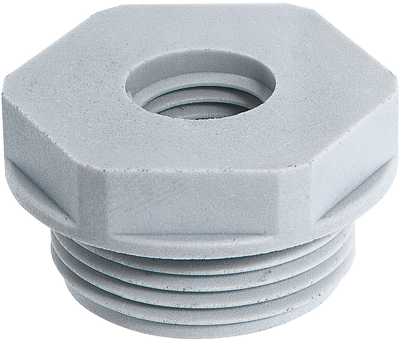

Reduction, 51730040, LAPP
The 51730040 is a reduction with PG-threads, outer hexagon and flat design.
Features
- Enables the use of cable glands with smaller connection threads than the existing threaded holes
- Glass fibre-reinforced for maximum mechanical stability
Applications
- Machines
- Devices
- Housings
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 33 mm | |
| max. operating temperature | 100 °C | |
| Thread size | PG21 to PG13.5 | |
| Length | 19 mm | |
| Colour | light gray | |
| Material | PA | |
| min. operating temperature | -40 °C | |
| Product type | adapter/reduction |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
