51730202 | LAPP

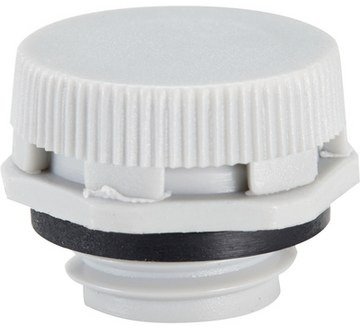

Pressure compensation element, M12 x 1.5, round, PA, (H) 17.6 mm, light gray, for enclosure, 51730202
Order No.: 32P2411
EAN: 4044776555643
MPN:
51730202
SKINDICHT VENT 12x1,5 LGY
Series: SKINDICHT VENT
Unit Price (€ / pc.)
4.6172 € *
Standard delivery time from the manufacturer is: On Request
Pressure compensation element, 51730202, LAPP
Pressure compensation element that ensures the necessary pressure compensation when the housing is closed. This fully prevents the formation of moisture or condensate. This product is suitable especially for closed housings where optimum ventilation is needed.
Features
- Good oil and chemical resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | pressure compensation element | |
| Version | M12 x 1.5 | |
| Design | round | |
| Material | PA | |
| Height | 17.6 mm | |
| Colour | light gray | |
| Type of mounting | screw | |
| Degree of protection (IP) | IP66/IP67/IP69 | |
| Suitable for | enclosure |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
