D140A | Kurth Electronic
Easytest 400 IT Sine Search Signal GeneratorData Port Test Overvoltage Protected 120V AC/DC
Unit Price (€ / pc.)
121.38 € *
Available in 7 Days: 28 pcs. - if ordered today

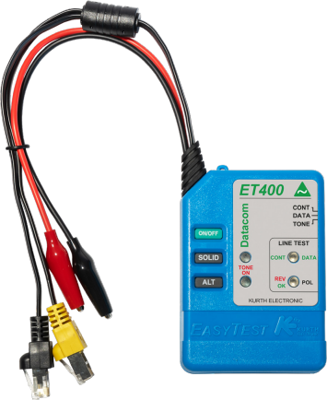

Cable finder kit, EASYTEST 400, Kurth Electronic
EasyTest400 displays voltages present on cores, detects polarity and can be used as a continuity tester. In addition, six different frequencies can be generated as search signals. You can choose between three continuous tones or three alternating tones. The selection is made in a user-friendly way by means of keys with LED display, which also indicates the battery status. Each search signal can also be fed into live telecommunication lines.
The unit also has a sine wave output signal to minimise signal crosstalk on adjacent wire pairs, especially with xDSL or Ethernet signals, and is protected up to 120 volts DC/AC. The strong crocodile clips are insulated, the special RJ11/RJ45 plug has a strain relief.
Features
- Six built-in tones
- High power output
- Tone tracing on active telephone lines
- Cable tracking inside walls
- Data port test and port finder function
- Precise pair identifying
- Signal strength LED with Noise Filter
- Built-in torch light
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 25 mm | |
| Length | 68 mm | |
| Weight | 150 g | |
| Product type | line locating device | |
| Height | 96 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90304000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
