KG20.T203/33.KL51V | Kraus & Naimer

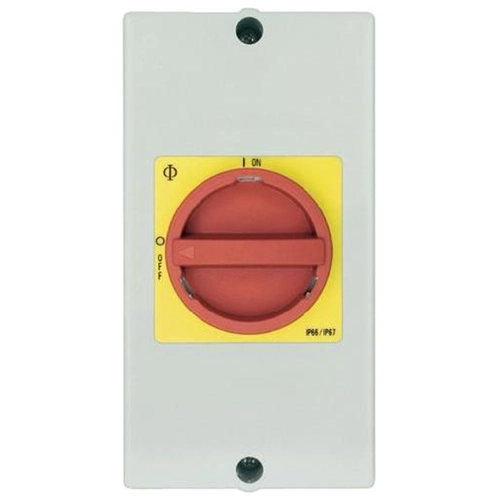

Repair switch, rotary actuator, 3 pole, 25 A, (L x W x H) 160 x 85 x 82 mm, panel mounting, KG20.T203/33.KL51V
Unit Price (€ / pc.)
63.2842 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
63.28 € *
Price list
Quantity
Price per unit*
1 pcs.
63.2842 €
5 pcs.
59.7737 €
10 pcs.
56.2513 €
25 pcs.
52.7408 €
50 pcs.
50.9677 €
*incl. VAT plus shipping costs
Subject to prior sale
Repair/service switches with emergency-off function, type Kraus & Naimer KG.
To IEC/EN 60947, IEC/EN 60204, VDE 0660 and VDE 0113, 3-pole, plastic case, yellow contrast plate, red handle and lock mechanism; Degree of protection: IP 66/67. A special hood lock prevents opening of the housing in any other than 0 position, easy wiring thanks to large terminal space and practical fast-on terminals. Insulation voltage (mains with grounded star point only): Overvoltage category: III. Degree of soiling: 3.
Technical attributes (type, continuous current, breaking capacity AC-23 A/B (3 x 380/440 V)): KG20 T203/33 KL51V, 25 A, 7.5 kW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Height | 82 mm | |
| Degree of protection (IP) | IP66 | |
| Assembly | panel mounting | |
| Width | 85 mm | |
| Permanent current | 25 A | |
| Length | 160 mm | |
| Product type | repair switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
