ZDFL 21X120B 10% 22R | KRAH
Wirewound resistor, 22 Ω, 65 W, ±10 %, ZDFL 21X120B 10% 22R
Unit Price (€ / pc.)
15.7080 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
973.90 € *
Price list
Quantity
Price per unit*
62 pcs.
15.7080 €
250 pcs.
14.9464 €
500 pcs.
14.4823 €
*incl. VAT plus shipping costs
Subject to prior sale

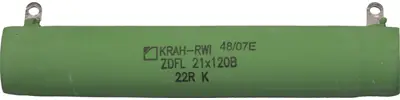

Cemented wire-wound power resistors, 65 W, tolerance 10 %, type KRAH ZDFL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 21 mm | |
| Power | 65 W | |
| max. operating temperature | 350 °C | |
| Tolerance | ±10 % | |
| Length | 120 mm | |
| Assembly | chassis mounting | |
| Design | chassis | |
| ohmic resistance | 22 Ω | |
| Version | high load wire resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 50 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
