ZDFL 21X120B 10% 10R | KRAH
Wirewound resistor, 10 Ω, 65 W, ±10 %, ZDFL 21X120B 10% 10R
Unit Price (€ / pc.)
22.6814 € *
Available: 70 pcs.
Total Price:
22.68 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6814 €
10 pcs.
19.9682 €
50 pcs.
18.5878 €
200 pcs.
17.5168 €
400 pcs.
16.8266 €
*incl. VAT plus shipping costs
Subject to prior sale

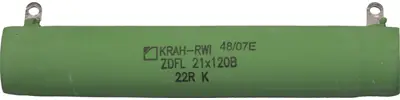

Cemented wire-wound power resistors, 65 W, tolerance 10 %, type KRAH ZDFL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 21 mm | |
| Power | 65 W | |
| max. operating temperature | 350 °C | |
| Tolerance | ±10 % | |
| Length | 120 mm | |
| Assembly | chassis mounting | |
| Design | chassis | |
| ohmic resistance | 10 Ω | |
| Version | high load wire resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 50 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
