VHPR 300 H 47R K 300 | KRAH

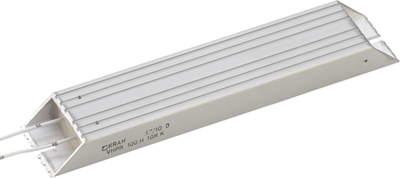

Wirewound resistor, 47 Ω, 300 W, ±10 %, VHPR 300 H 47R K 300
Unit Price (€ / pc.)
98.1869 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
490.93 € *
Price list
Quantity
Price per unit*
5 pcs.
98.1869 €
10 pcs.
96.2234 €
50 pcs.
91.3206 €
100 pcs.
89.3571 €
*incl. VAT plus shipping costs
Subject to prior sale
Braking/power resistors, type KRAH VHPR.
In aluminum profile, high voltage/pulse strength
Braking/power resistors, 300 W, type VHPR 300.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 300 W | |
| Temperature coefficient | -80/+1200 ppm/K | |
| max. operating temperature | 200 °C | |
| Tolerance | ±10 % | |
| Length | 217 mm | |
| Height | 31 mm | |
| Assembly | chassis mounting | |
| Width | 60 mm | |
| min. operating temperature | -40 °C | |
| Design | chassis | |
| ohmic resistance | 47 Ω | |
| Version | braking/power wire-wound resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 5 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
