VHPR 100 H 22R K 300 | KRAH

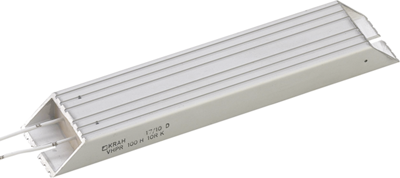

Wirewound resistor, 22 Ω, 100 W, ±10 %, VHPR 100 H 22R K 300
Unit Price (€ / pc.)
49.3731 € *
Next delivery: 40 pcs. on 2025-10-31
Total Price:
49.37 € *
Price list
Quantity
Price per unit*
1 pcs.
49.3731 €
10 pcs.
45.7198 €
50 pcs.
43.1256 €
100 pcs.
40.6861 €
*incl. VAT plus shipping costs
Subject to prior sale
Braking/power resistors, type KRAH VHPR.
In aluminum profile, high voltage/pulse strength
Braking/power resistors, 100 W, type VHPR 100.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | chassis mounting | |
| Power | 100 W | |
| Design | chassis | |
| max. operating temperature | 200 °C | |
| Version | braking/power wire-wound resistor | |
| Temperature coefficient | -80/+1200 ppm/K | |
| Width | 40 mm | |
| ohmic resistance | 22 Ω | |
| Height | 21 mm | |
| min. operating temperature | -40 °C | |
| Tolerance | ±10 % | |
| Length | 167 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 10 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
