D 85/100W 10% 47R | KRAH

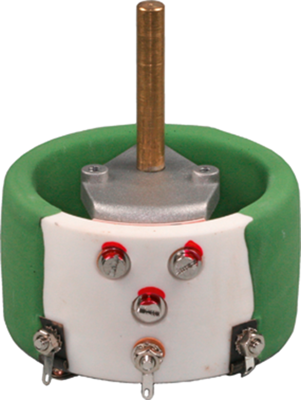

Ceramic wire potentiometer, 47 Ω, 100 W, linear, solder lug, D 85/100W 10% 47R
Discontinued
Unit Price (€ / pc.)
237.1075 € *
Available: 1 pcs.
Total Price:
237.11 € *
Price list
Quantity
Price per unit*
1 pcs.
237.1075 €
3 pcs.
224.8624 €
50 pcs.
136.0408 €
*incl. VAT plus shipping costs
Subject to prior sale
Ceramic wire-wound potentiometers, type KRAH-RWI D 85/100.

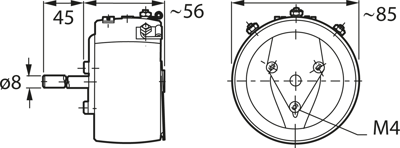

Rated power: 100 W. Max. load rating: 140 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 8.0 mm shaft. Shaft length: 45 mm. Test voltage: 2500 VAC. Mechanical/electrical range of adjustment: 280/270°.
Type: 47R
Technical specifications
| Length | 85 mm | |
| Mechanic rotary range | 280 ° | |
| ohmic resistance | 47 Ω | |
| axle diameter | 8 mm | |
| Connection | solder lug | |
| Version | ceramic wire potentiometer | |
| Track Taper | linear | |
| Assembly | straight | |
| Width | 56 mm | |
| Rotary range, electrical | 270 ° | |
| Power | 100 W |
Download
Logistics
| Original Packaging | Bulk with 3 pieces |
| Customs tariff number | 85333900 |
| Country of origin | IT |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
