D 55/40W 10% 1K0 | KRAH

Ceramic wire potentiometer, 1 kΩ, 40 W, linear, solder lug, D 55/40W 10% 1K0

Order No.: 74E856
EAN: 4099879973566
MPN:
D 55/40W 10% 1K0
Series: D55

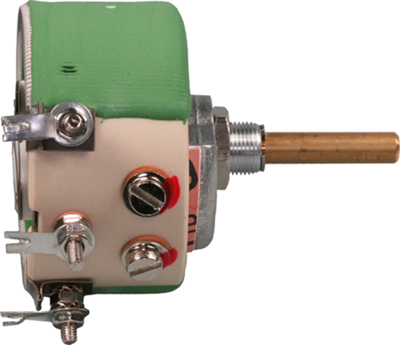

D 55/40W 10% 1K0 KRAH Potentiometers Image 1

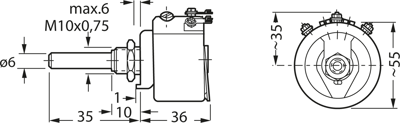

D 55/40W 10% 1K0 KRAH Potentiometers Image 2
Image may differ

Discontinued

Unit Price (€ / pc.)
197.6828 € *
Available: 3 pcs.
Total Price:
197.68 € *
Price list
Quantity
Price per unit*
1 pcs.
197.6828 €
4 pcs.
188.0914 €
50 pcs.
111.2531 €
*incl. VAT plus shipping costs
Subject to prior sale

Ceramic wire-wound potentiometers, type KRAH-RWI D 55/40.

Rated power: 40 W. Max. load rating: 60 W/40 °C, compliant with DIN 41475. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 25 mm. Test voltage: 2000 VAC. Mechanical/electrical range of adjustment: 280/270°.

Type: 1K0

Technical specifications
Filter Property Value
Assembly straight
Mechanic rotary range 280 °
axle diameter 6 mm
Connection solder lug
Track Taper linear
ohmic resistance 1 kΩ
Rotary range, electrical 270 °
Width 36 mm
Version ceramic wire potentiometer
Power 40 W
Length 55 mm
Logistics
Property Value
Original Packaging Bulk with 4 pieces
Country of origin IT
Customs tariff number 85333900
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
