131402009 | Kopp
Surface mount german schuko-style socket, white, 16 A/250 V, Germany, IP44, 131402009
Order No.: 08N526
EAN: 4008224338615
MPN:
131402009
1314.0200.9
Unit Price (€ / pc.)
31.1423 € *
Standard delivery time from the manufacturer is: 2 Weeks

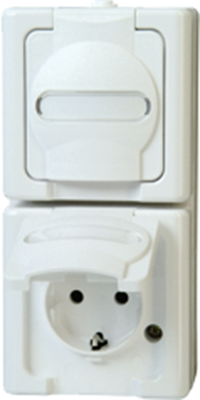

Surface mount earthed socket outlet, 131402009, Kopp
Can be combined individually for vertical or horizontal mounting, cable entries on all sides, labeling field, outlet inserts for severe conditions to DIN 30600 registration no.1665, free of halogen and PVC, resistant against diverse chemical influences; Color: arctic white. Conductor cross-section: up to 2.5 mm². Degree of protection: IP 44. Operating temperatures: -20 to +110 °C.
Surface-mount wet room Schuko-style outlets with safety lock.
Hinged cover with labeling field, wired, 16 A/250 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | surface mount german schuko-style socket | |
| Hinged cover available | Yes | |
| Country code | Germany | |
| Degree of protection (IP) | IP44 | |
| Nominal power | 16 A/250 V | |
| Connection | clamp connection | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
