103402000 | Kopp

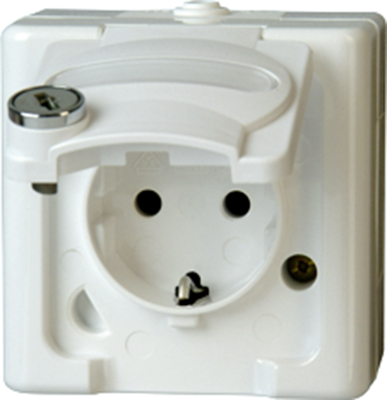

Surface mount german schuko-style socket, white, 16 A/250 V, Germany, IP44, 103402000
Order No.: 08N522
EAN: 4008224338240
MPN:
103402000
1034.0200.0
Unit Price (€ / pc.)
51.3604 € *
Standard delivery time from the manufacturer is: 2 Weeks
Surface mount earthed socket outlet, 103402000, Kopp
Can be combined individually for vertical or horizontal mounting, cable entries on all sides, labeling field, outlet inserts for severe conditions to DIN 30600 registration no.1665, free of halogen and PVC, resistant against diverse chemical influences; Color: arctic white. Conductor cross-section: up to 2.5 mm². Degree of protection: IP 44. Operating temperatures: -20 to +110 °C.
Surface-mount wet room Schuko-style outlets with safety lock.
Hinged cover with labeling field, 16 A/250 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | surface mount german schuko-style socket | |
| Country code | Germany | |
| Colour | white | |
| Connection | plug-in terminal | |
| Nominal power | 16 A/250 V | |
| Degree of protection (IP) | IP44 | |
| Hinged cover available | Yes | |
| Child safety lock available | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
