560502004 | Kopp

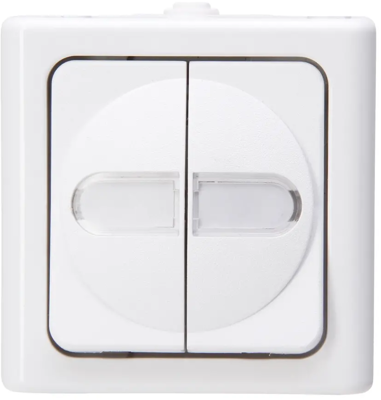

Surface-mount series switch for wet rooms
Order No.: 08N504
EAN: 4008224338639
MPN:
560502004
5605.0200.4
Unit Price (€ / pc.)
25.4541 € *
Standard delivery time from the manufacturer is: 2 Weeks
Surface-mount wet room portfolio, type Kopp BLUE ELECTRIC.
Can be combined individually for vertical or horizontal mounting, cable entries on all sides, labeling field, outlet inserts for severe conditions to DIN 30600 registration no.1665, free of halogen and PVC, resistant against diverse chemical influences; Color: arctic white. Conductor cross-section: up to 2.5 mm². Degree of protection: IP 44. Operating temperatures: –20 to +110 °C.
Switches and pushbutton switches.
Breaking capacity: 10 A/250 VAC, illuminated.
Type: 5605.0200.4, series switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | damp-proof series switch | |
| Version | surface mounted | |
| Colour | white | |
| illuminated | Yes | |
| Rated voltage (AC) | 250 V | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
