143800015 | Kopp
Personal protection switch, 3 pole, 16 A, 30 mA, type A, 230 V, 143800015
Order No.: 06N6810
EAN: 4008224374675
MPN:
143800015
1438.0001.5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
304.997 € *
Standard delivery time from the manufacturer is: On Request

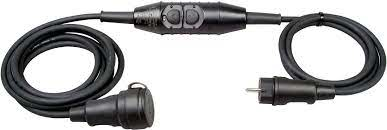

PRCD intermediate switch 1438.0001.5
in sturdy case, protective contact solid rubber plug, protective contact rubber coupling with cover.
Cable lengths: Protective contact plug-PRCD-S 150 cm, protective contact coupling-PRCD-S 300 cm
Cable: H07RN-F3G1.5mm²
Fault current type: A
Frequency: 50 Hz
Protection class (IP) IP44
Number of poles: 3
Rated voltage: 230V
Rated current: 16A
Rated residual current: 30mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Rated current | 16 A | |
| Rated residual current | 30 mA | |
| Fault current type | A | |
| Rated Voltage | 230 V | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
