172005030 | Kopp

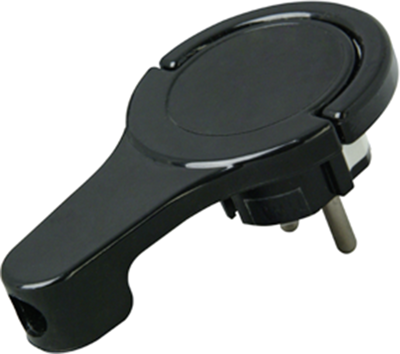

Schuko-style angled plug, 172005030
Order No.: 05N9082
EAN: 4008224588829
MPN:
172005030
1720.0503.0
Unit Price (€ / pc.)
12.3046 € *
Standard delivery time from the manufacturer is: 2 Weeks
Schuko-style angled plugs, type Kopp 1720.
Extra-flat (8.0 mm), with bracket for simple removal from the outlet, two ground contact systems to CEE 7/VII; Rated voltage: 250 VAC. Rated current: 16 A. Cable cross-section: max. 3 x 1.5 mm².
Type: 1720.0503.0, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | german schuko-style plug | |
| Version | angled, extra flat | |
| Country code | Germany | |
| Pin number | 2 pole + PE | |
| Connection | screw connection | |
| Cable cross-section | 1.5 mm² | |
| Colour | black | |
| Nominal power | 16 A/250 V | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
