03.308.005.1 | Knürr

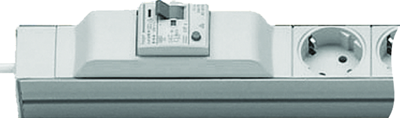

Outlet strip, 5-way, 2.5 m, 16 A, with surge protection, gray, 03.308.005.1

Order No.: 07L4765
EAN: 4099891431860
MPN:
03.308.005.1
DI-STRIP D Prot LS 5Dosen
03.308.005.1 Knürr Power Outlet Strips and Cable Drums Image 1
03.308.005.1 Knürr Power Outlet Strips and Cable Drums Image 2
Image may differ
Unit Price (€ / pc.)
201.11 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
201.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
201.11 €

Schuko-style outlet strips, type Knürr Di-Strip Protector Fi/LS/Fi-LS.

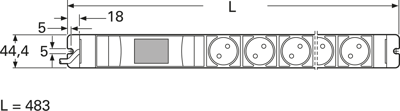

Optional mounting in 19-inch racks of the 483 mm length units. Outlet angle 45°, outlet pitch 50 mm; Dimensions: H 78 mm. Housing width: 44.4 mm (1 HU). Rating: 100 to 240 VAC/16 A. Design: CE label according to low-voltage directive 73/23/EC and EMC directive 89/336/EC, VDE certificate (only type LS). Housing: closed, galvanized steel sheet profile, powder-coated structure. Plastic components: Vampamide 6 0024 VO (UL 94 V-0). Internal conductor: continuous busbars made of brass. Connecting cable: H05VV-F3G 1.5 mm², 2.5 m, PVC, molded angled plug. Supplied with mounting brackets. Color: light-gray.

With automatic cutout, type Protector LS 03.308.

For overload/short-circuit protection, 16 A. Tripping characteristics, type B, 2-pole.

Technical attributes (type, number of outlets, color, dimension L): 03.308.005.1, 5 outlets, RAL 7035 light-gray, L 483 mm

Technical specifications
Cable length 2.5 m
Colour gray
Degree of protection (IP) IP20
Depth 78 mm
Rated current 16 A
Width 44.4 mm
Length 483 mm
USB connection No
Material sheet steel
Overvoltage protection Yes
Can be switched off Yes
Number of sockets 5
Master-Slave No
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
