03.302.003.1 | Knürr

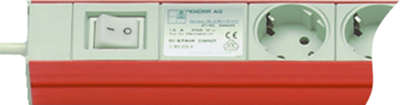

Outlet strip, 3-way, 2.5 m, 16 A, gray, 03.302.003.1

Order No.: 07L4730
EAN: 4099891431648
MPN:
03.302.003.1
DI-STRIP D Compact 3Do+Scha
03.302.003.1 Knürr Power Outlet Strips and Cable Drums
Image may differ
Unit Price (€ / pc.)
89.250 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
89.25 € *
Price list
Quantity
Price per unit*
1 pcs.
89.250 €
5 pcs.
80.325 €
*incl. VAT plus shipping costs
**Subject to prior sale

Schuko-style outlet strips, type Knürr Di-Strip Compact.

Industrial socket strip 2-pole switch with or without lamp; Outlet angle: 45°. Outlet pitch: 50 mm. Dimensions: H 45.5 mm. Housing width: 44.4 mm (1 HU). Rating: 100 to 240 VAC/16 A. Design: CE marking in accordance with low-voltage directive 73/23/EC and EMC directive 89/336/EC, VDE, DIN 49440. Housing: closed steel sheet profile, galvanized, powder-coated structure. Plastic components: Vampamide 6 0024 VO (UL 94 V-0). Internal conductor: continuous busbars made of brass. Connecting cable: H05VV-F3G 1.5 mm², 2.5 m, PVC, with molded angled plug, supplied with mounting brackets. With pastel-orange color the plastic parts are light-gray RAL 7035.

With switch, type 03.302.

Technical attributes (type, number of outlets, color, dimension L): 03.302.003.1, 3 outlets, RAL 7035 light-gray, L 333 mm

Technical specifications
Cable length 2.5 m
Colour gray
Degree of protection (IP) IP20
Depth 45.5 mm
Rated current 16 A
Width 44.4 mm
Length 333 mm
USB connection No
Material sheet steel
Overvoltage protection No
Can be switched off Yes
Number of sockets 3
Master-Slave No
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
