03.300.004.1 | Knürr

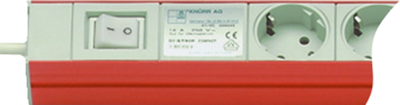

Outlet strip, 4-way, 2.5 m, 16 A, gray, 03.300.004.1

Order No.: 07L4742
EAN: 4099891431723
MPN:
03.300.004.1
DI-STRIP D Compact 4Dosen
03.300.004.1 Knürr Power Outlet Strips and Cable Drums
Image may differ
Unit Price (€ / pc.)
80.920 € *
Available: 5 pcs.
Total Price:
80.92 € *
Price list
Quantity
Price per unit*
1 pcs.
80.920 €
3 pcs.
76.874 €
6 pcs.
73.066 €
*incl. VAT plus shipping costs
Subject to prior sale

Schuko-style outlet strips, type Knürr Di-Strip Compact.

Industrial socket strip 2-pole switch with or without lamp; Outlet angle: 45°. Outlet pitch: 50 mm. Dimensions: H 45.5 mm. Housing width: 44.4 mm (1 HU). Rating: 100 to 240 VAC/16 A. Design: CE marking in accordance with low-voltage directive 73/23/EC and EMC directive 89/336/EC, VDE, DIN 49440. Housing: closed steel sheet profile, galvanized, powder-coated structure. Plastic components: Vampamide 6 0024 VO (UL 94 V-0). Internal conductor: continuous busbars made of brass. Connecting cable: H05VV-F3G 1.5 mm², 2.5 m, PVC, with molded angled plug, supplied with mounting brackets. With pastel-orange color the plastic parts are light-gray RAL 7035.

Without switch, type 03.300.

Technical attributes (type, number of outlets, color, dimension L): 03.300.004.1, 4 outlets, RAL 7035 light-gray, L 333 mm

Technical specifications
Filter Property Value
Number of sockets 4
Cable length 2.5 m
USB connection No
Overvoltage protection No
Colour gray
Width 44.4 mm
Rated current 16 A
Can be switched off Yes
Material sheet steel
Master-Slave No
Depth 45.5 mm
Length 333 mm
Degree of protection (IP) IP20
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
