12 74 180 SB | Knipex

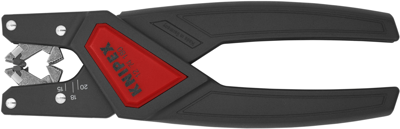

Stripping pliers for sensor/actuator cables, cable Ø 4.4-7.5 mm, L 175 mm, 145 g, 12 74 180 SB
Order No.: 05L2043
EAN: 4099891368357
MPN:
12 74 180 SB
1274180SB
Unit Price (€ / pc.)
94.010 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
94.01 € *
Price list
Quantity
Price per unit*
1 pcs.
94.010 €
6 pcs.
84.609 €
*incl. VAT plus shipping costs
Subject to prior sale

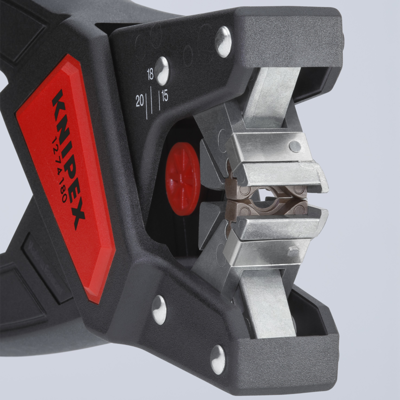

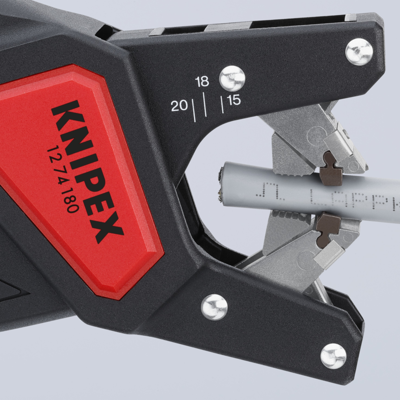

For oil-resistant, halogen-free control and sensor / actuator cables with multicore cable design. Shielded and unshielded. Suitable for highly flexible TPE-U-pipes, PUR and PVC cable sheathing, rubber leads such as H05 etc.. Adjusts automatically to the different cable diameters: therefore no damage to inner conductors or the shield braid. Long stripping lengths possible. Blade replaceable. Smoothly operating mechanism. Low weight. Body: plastic, fibreglass-reinforced. Blade: special tool steel, oil-hardened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | No | |
| Length | 175 mm | |
| Weight | 145 g | |
| Suitable for | sensor/actuator cables | |
| Cable Diameter | 4.4-7.5 mm | |
| Product type | stripping pliers |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
