12 42 195 | Knipex

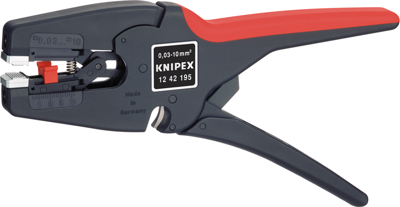

Stripping pliers for PVC-coated cables, 0.03-10 mm², AWG 32-8, L 195 mm, 136 g, 12 42 195
Order No.: 05L7830
EAN: 4003773054580
MPN:
12 42 195
1242195
Unit Price (€ / pc.)
109.0278 € *
Available: 3 pcs.
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
109.03 € *
Price list
Quantity
Price per unit*
1 pcs.
109.0278 €
6 pcs.
98.1274 €
*incl. VAT plus shipping costs
Subject to prior sale

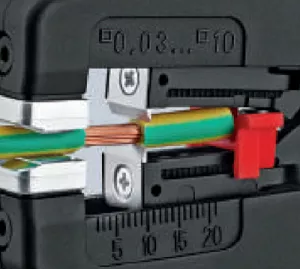

Stripping without re-adjustment from 0.03 to 10.0 mm². Universal blade geometry -robust and more durable. Ideal grip design with excellent haptics. Recessed wire cutter. Fully automatic adjustment to all single-, multi- and fine-stranded conductors with standard insulation throughout the entire capacity range from 0.03 to 10.0 mm². No manual fine adjustment necessary. No damage to the conductors. The clamping jaws made of steel hold the cable in a way that prevents slipping without damaging the remaining insulation. With recessed wire cutter for Cu and Al conductors, stranded up to 10 mm² and single wire up to 6 mm². Particularly smooth-running mechanics and very low weight. Replaceable blades block and length stop. Handle with soft-plastic zone for a steady grip. Body: plastic, fibreglass-reinforced. Blade: special tool steel, oil-hardened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 32-8 | |
| Length | 195 mm | |
| 1000V Insulated | No | |
| Product type | stripping pliers | |
| Weight | 136 g | |
| Suitable for | PVC-coated cables | |
| Cable cross-section | 0.03-10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | not_relevant |
| SVHC free | No |
