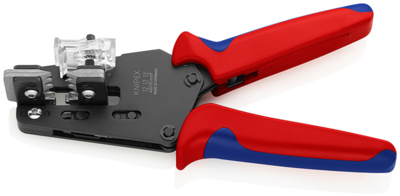

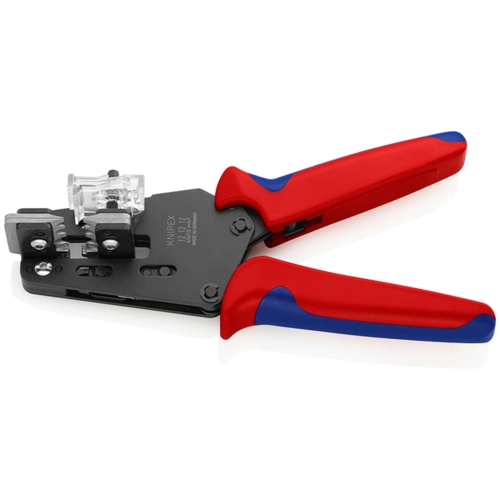

12 12 12 | Knipex
Stripping pliers for cable with PTFE insulation, conductor with silicone insulation, conductor with radox insulation, conductor with kapton insulation, 4.0-10 mm², AWG 12-8, L 195 mm, 450 g, 12 12 12
Order No.: 20L1335
EAN: 4003773073758
MPN:
12 12 12
121212
Unit Price (€ / pc.)
144.2994 € *
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
144.30 € *
Price list
Quantity
Price per unit*
1 pcs.
144.2994 €
3 pcs.
129.8766 €
*incl. VAT plus shipping costs
Subject to prior sale
Form-fit stripping also of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber- multi-layer too. A second pair of blades holds the remaining insulation reliably in place. Replaceable shaped blade adapted precisely to the respective conductor cross-section. With length stop for constant stripping length during repetitive work. Pliers body: steel. Blade: special tool steel, oil-hardened Model: For solar cables, specially adapted to multi-layered and RADOX® insulations. With additional cable support for a better centring of multi-layer insulated conductors in the stripping profiles.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | No | |
| AWG cross-section | AWG 12-8 | |
| Length | 195 mm | |
| Weight | 450 g | |
| Suitable for | cable with PTFE insulation, conductor with silicone insulation, conductor with radox insulation, conductor with kapton insulation | |
| Product type | stripping pliers | |
| Cable cross-section | 4.0-10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | not_relevant |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
