78 61 140 ESD | Knipex
ESD side cutter, 140 mm, 77 g, cut capacity (2.1/1.4 mm/–/–), 78 61 140 ESD
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
30.0475 € *
Available: 1 pcs.
Total Price:
30.05 € *
Price list
Quantity
Price per unit*
1 pcs.
30.0475 €
6 pcs.
27.0487 €
*incl. VAT plus shipping costs
Subject to prior sale

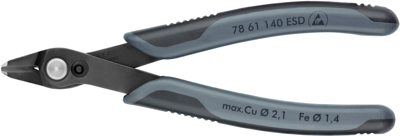

Diagonal cutter, 78 61 140 ESD, Knipex
For ultra fine cutting work, e.g. in electronics and fine mechanics. Ground, very sharp cutting edges without bevel. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Precision shaped tips cut wires resting on a board from 0.2 mm dia.. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter Model: Cutting-edge hardness approx. 64 HRC. Cutting edges additionally induction hardened. Special tool steel, oil hardened in multiple stages.
Technical Data
- Material: Special steel
- Weight: 77 g
- Length: 140 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | side cutter | |
| ESD protection | Yes | |
| 1000V Insulated | No | |
| Length | 140 mm | |
| Weight | 77 g | |
| Cutting edge | without facet | |
| Cutting capacity (soft) | 2.1 mm | |
| Cutting capacity (medium-hard) | 1.4 mm | |
| Material | special steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
