78 03 140 | Knipex
Side cutter, 140 mm, 77 g, cut capacity (2.1/1.2 mm/–/–), 78 03 140
Unit Price (€ / pc.)
26.9654 € *
Available: 5 pcs.
Total Price:
26.97 € *
Price list
Quantity
Price per unit*
1 pcs.
26.9654 €
6 pcs.
24.2760 €
*incl. VAT plus shipping costs
Subject to prior sale

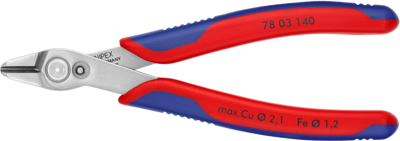

Diagonal cutter, 78 03 140, Knipex
For ultra fine cutting work, e.g. in electronics and fine mechanics. In particular for cutting cable ties to length. Ground, very sharp cutting edges without bevel. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Precision shaped tips cut wires resting on a board from 0.2 mm dia.. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter Model: Cutting edge hardness approx. 54 HRC. INOX - tool steel.
Technical Data
- Material: Special steel
- Weight: 77 g
- Length: 140 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | side cutter | |
| Weight | 77 g | |
| 1000V Insulated | No | |
| ESD protection | No | |
| Material | special steel | |
| Cutting capacity (medium-hard) | 1.2 mm | |
| Length | 140 mm | |
| Cutting capacity (soft) | 2.1 mm | |
| Cutting edge | without facet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
