78 03 140 ESD | Knipex
ESD side cutter, 140 mm, 77 g, cut capacity (2.1/1.2 mm/–/–), 78 03 140 ESD
Unit Price (€ / pc.)
28.7980 € *
Next delivery: 5 pcs. on 2025-12-02
Total Price:
28.80 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7980 €
6 pcs.
25.9182 €
*incl. VAT plus shipping costs
Subject to prior sale

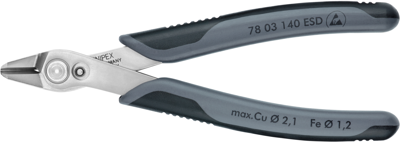

Diagonal cutter, 78 03 140 ESD, Knipex
For ultra fine cutting work, e.g. in electronics and fine mechanics. Ground, very sharp cutting edges without bevel. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Precision shaped tips cut wires resting on a board from 0.2 mm dia.. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter Model: Cutting edge hardness approx. 54 HRC. INOX - tool steel.
Technical Data
- Material: Special steel
- Weight: 77 g
- Length: 140 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 77 g | |
| 1000V Insulated | No | |
| Material | special steel | |
| Cutting capacity (medium-hard) | 1.2 mm | |
| Version | side cutter | |
| Cutting capacity (soft) | 2.1 mm | |
| ESD protection | Yes | |
| Length | 140 mm | |
| Cutting edge | without facet |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
