77 42 115 | Knipex

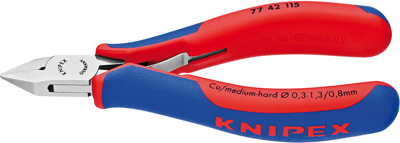

Side cutter, 115 mm, 80 g, cut capacity (1.3/0.8 mm/–/–), 77 42 115
Order No.: 05L2546
EAN: 4003773039761
MPN:
77 42 115
7742115
Unit Price (€ / pc.)
45.220 € *
Available: 4 pcs.
Total Price:
45.22 € *
Price list
Quantity
Price per unit*
1 pcs.
45.220 €
6 pcs.
40.698 €
*incl. VAT plus shipping costs
Subject to prior sale
Diagonal cutter, 77 42 115, Knipex
For fine cutting work, e.g. in electronics and fine mechanics. Sturdy, zero-backlash box joint. Low-friction double spring for gentle and even opening. The polish or mirror polish (only finish 2) together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally induction hardened. High-grade special tool steel, forged, multi stage oil-hardened Model: Pointed head, without bevel. Cutting edge hardness approx. 57 HRC.
Technical Data
- Material: Special steel
- Weight: 80 g
- Length: 115 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 80 g | |
| Cutting capacity (medium-hard) | 0.8 mm | |
| ESD protection | No | |
| Cutting edge | without facet | |
| Cutting capacity (soft) | 1.3 mm | |
| Length | 115 mm | |
| Version | side cutter | |
| Material | special steel | |
| 1000V Insulated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
