77 32 115 ESD | Knipex

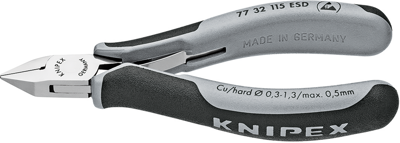

ESD side cutter, 115 mm, 80 g, cut capacity (1.3/1/0.5 mm/–), 77 32 115 ESD
Order No.: 05L2544
EAN: 4003773025122
MPN:
77 32 115 ESD
7732115ESD
Unit Price (€ / pc.)
46.4695 € *
Next delivery: 2 pcs. on 2025-08-04
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
46.47 € *
Price list
Quantity
Price per unit*
1 pcs.
46.4695 €
6 pcs.
41.8166 €
*incl. VAT plus shipping costs
Subject to prior sale
Diagonal cutter, 77 32 115 ESD, Knipex
For fine cutting work, e.g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Sturdy, zero-backlash box joint. Low-friction double spring for gentle and even opening. The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally induction hardened. With two-colour dual component grips, black/grey. High-grade special tool steel, forged, multi stage oil-hardened Model: Pointed head, with small bevel. Cutting edge hardness approx. 60 HRC.
Technical Data
- Material: Special steel
- Weight: 80 g
- Length: 115 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 80 g | |
| Cutting capacity (medium-hard) | 1 mm | |
| Cutting capacity (soft) | 1.3 mm | |
| ESD protection | Yes | |
| Material | special steel | |
| Cutting capicity (hard) | 0.5 mm | |
| Version | side cutter | |
| Cutting edge | with facet | |
| 1000V Insulated | No | |
| Length | 115 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
