77 02 115 ESD | Knipex
ESD side cutter, 115 mm, 82 g, cut capacity (1.6/1.2/0.6 mm/–), 77 02 115 ESD
Order No.: 05L2532
EAN: 4003773025092
MPN:
77 02 115 ESD
7702115ESD
Unit Price (€ / pc.)
48.9923 € *
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
48.99 € *
Price list
Quantity
Price per unit*
1 pcs.
48.9923 €
6 pcs.
44.0895 €
*incl. VAT plus shipping costs
Subject to prior sale

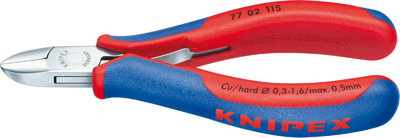

Diagonal cutter, 77 02 115 ESD, Knipex
For fine cutting work, e.g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Sturdy, zero-backlash box joint. Low-friction double spring for gentle and even opening. The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally induction hardened. With two-colour dual component grips, black/grey. High-grade special tool steel, forged, multi stage oil-hardened Model: Round head, with small bevel. Cutting edge hardness approx. 60 HRC.
Technical Data
- Material: Special steel
- Weight: 82 g
- Length: 115 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | special steel | |
| Cutting capacity (medium-hard) | 1.2 mm | |
| Length | 115 mm | |
| Cutting capicity (hard) | 0.6 mm | |
| 1000V Insulated | No | |
| Weight | 82 g | |
| Version | side cutter | |
| Cutting edge | with facet | |
| Cutting capacity (soft) | 1.6 mm | |
| ESD protection | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
