74 22 250 | Knipex

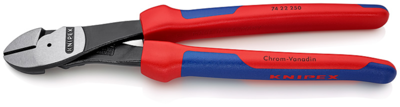

Power side cutter, 250 mm, 437 g, cut capacity (–/4.6/3.5/3 mm), 74 22 250
Order No.: 20L2880
EAN: 4003773071372
MPN:
74 22 250
7422250
Unit Price (€ / pc.)
43.9824 € *
Available: 1 pcs.
Total Price:
43.98 € *
Price list
Quantity
Price per unit*
1 pcs.
43.9824 €
6 pcs.
39.5913 €
*incl. VAT plus shipping costs
Subject to prior sale
For very tough, continuous use. High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio. Precision cutting edges additionally induction hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire. Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened Length 250 mm: The 250-mm-long diagonal cutter is suitable for copper conductors up to 16 mm² and aluminium conductors up to 35 mm².
Technical specifications
| Cutting capacity (medium-hard) | 4.6 mm | |
| 1000V Insulated | No | |
| Cutting edge | with facet | |
| Weight | 437 g | |
| Material | chromium-vanadium steel | |
| ESD protection | No | |
| Version | power side cutter | |
| Length | 250 mm | |
| Cutting capicity (hard) | 3.5 mm | |
| Cutting capicity (Piano wire) | 3 mm |
Download
Logistics
| Customs tariff number | 82032000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
