74 06 200 | Knipex
VDE power side cutter, 200 mm, 308 g, cut capacity (–/4.2/3/2.5 mm), 74 06 200
Order No.: 05L2596
EAN: 4003773033820
MPN:
74 06 200
7406200
Unit Price (€ / pc.)
45.2081 € *
Available: 2 pcs.
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
45.21 € *
Price list
Quantity
Price per unit*
1 pcs.
45.2081 €
6 pcs.
40.6861 €
*incl. VAT plus shipping costs
Subject to prior sale

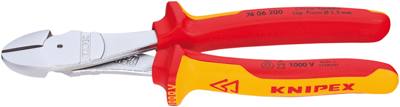

High leverage diagonal cutter, 74 06 200, Knipex
With integrated forged axle for heaviest duty. Suitable for all types of wire including piano wire. High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio. Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
Technical Data
- Material: Chromium-Vanadium steel
- Weight: 308 g
- Length: 200 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | Yes | |
| ESD protection | No | |
| Cutting capicity (hard) | 3 mm | |
| Cutting edge | with facet | |
| Length | 200 mm | |
| Cutting capicity (Piano wire) | 2.5 mm | |
| Material | chromium-vanadium steel | |
| Weight | 308 g | |
| Version | power side cutter | |
| Cutting capacity (medium-hard) | 4.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
